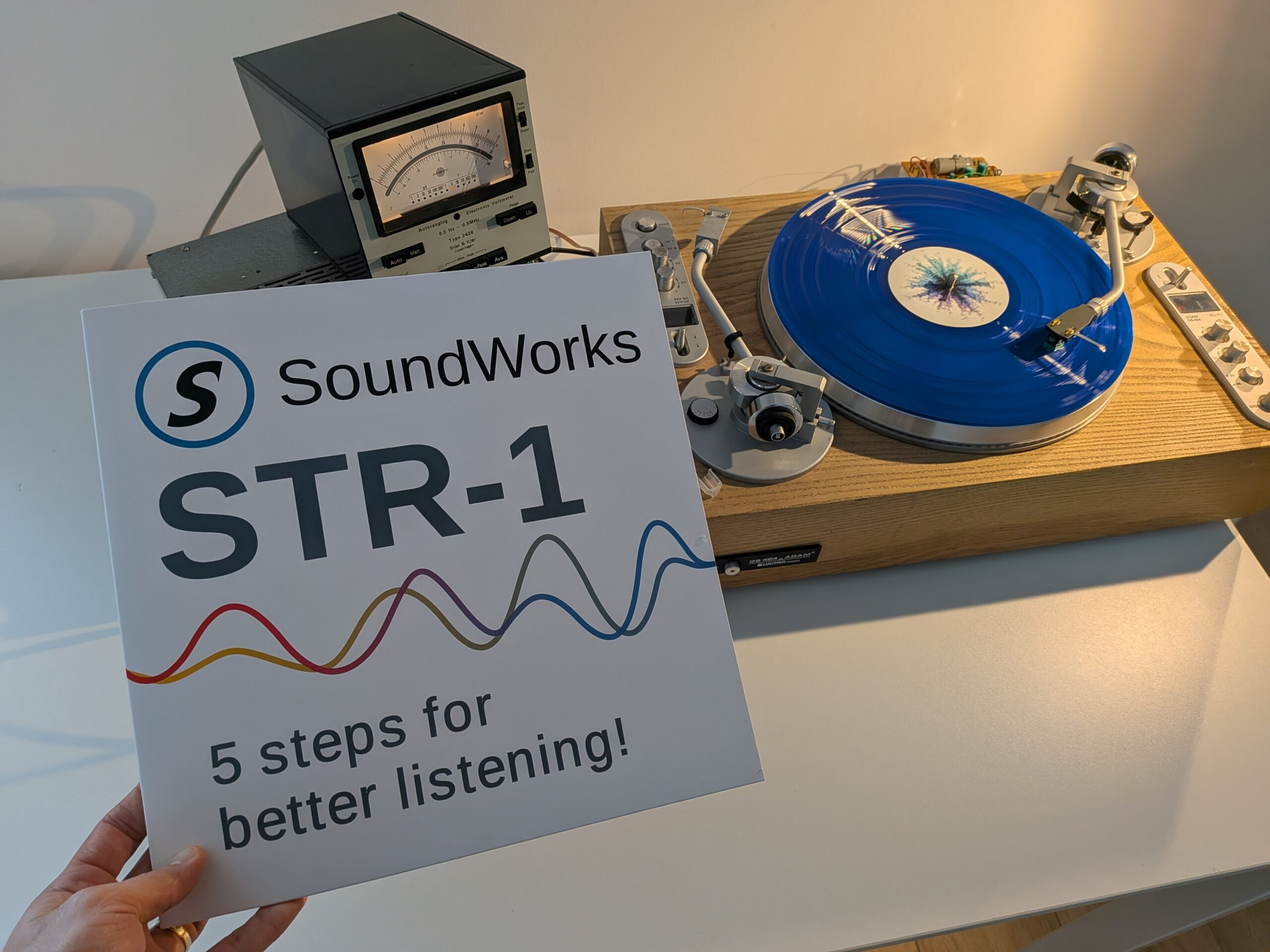

A simple and effective tool for every turntable enthusiast.
The album is addressed especially to turntable users with basic knowledge.
You can set up and test your turntable in 5 basic steps:
- Mechanical compatibility,
- Checking the correctness of the rotation,
- Verification of the parameters and operation of the turntable cartridge,
- Channel balance and polarity,
- Gain level and preamplifier setting.
The following songs count towards the steps.
Site A:
- Clean surface to check the anti-skating mechanism and the operation of the arm bearings themselves,
Site B:
- Wow & Flutter 33 ⅓ 3.15 kHz sine wave W&F 33 ⅓ RPM
- Wow & Flutter 45 3.15 kHz sine wave W&F 45 RPM
- Frequency response RIAA 30 Hz – 2 kHz sine wave steps with RIAA, level 0dB
- Frequency response RIAA 1 kHz – 16 kHz sine wave steps with RIAA, level -14dB
- Frequency response no RIAA 1 kHz – 50 kHz sine wave steps without RIAA, level 0dB
- Channel Ballance Pink Noise (standard): 10s both channels, 10s left channel, 10s right channel
- Polarity of channels Brownian noise (modified): monophonic in phase, monophonic out of phase
- Microphone measurement White Noise (standard)
- Reference tone 1kHz sine wave: 10s both channels, 10s left channel, 10s right channel
- Turntable stability Clear groove
źródło: www.Discogs.com/release/1725948
Referring to STR 101, a classic from the CBS Laboratories series!
This iconic title helped basic users properly set up their turntables. It was released in the 1970s, when microgroove and stereophony were already firmly established in the market. Many users needed guidance and tools to ensure they knew how to use these groundbreaking technological advancements.
Today, when vinyl has come back into wide use and many users are buying equipment or dusting it off after many years of keeping it in storage, support is needed to start using the turntable properly.
A lot has happened since then, and it’s worth keeping this release up to date! Our album was recorded using the Half Speed Mastering technique, used in the world’s best productions. This is the first such production in Poland.
They took part in its development and creation.
Daniel Kostrzewa
Founder, CEO
Adrian Krupowicz
Founder, CTO
After completion and detailed verification, the paintwork was signed
Basic questions
What turntable is it suitable for?
Any turntable that uses 33 1/3 and 45 rpm to play records and uses the RIAA equalization curve. This is the most common solution, having been in use practically since the 1960s. If you’re wondering what type of device you have, it’s almost certainly this one.
Is it worth using?
Absolutely. The disc allows you to test the device’s operation in simple steps. This can be especially valuable when returning to or beginning your adventure with this music information medium. The disc’s inner cover includes a detailed description of the steps to follow.
The CD is also a great way to test your system before listening. Following these key steps will allow you to ensure everything is working properly in just 5-15 minutes.
What level of knowledge do I need?
We wanted to ensure that even people with basic knowledge could perform the activities. The simplest tasks require only observing the mechanical reactions of the arm or simply listening to the sound from the speakers without any additional equipment.
For advanced users, there are extensive possibilities for taking measurements and making precise assessments.
Want to know more?
Be sure to follow our social media. We’ll keep you updated on all our events and offers!
Cooming soon!
Be sure to follow our website and all events at SoundWorks.
We are in the final stages of publishing the medium and it will be released in March!
You can pre-order the album now in our store. Shipping will take place in the second half of March.
